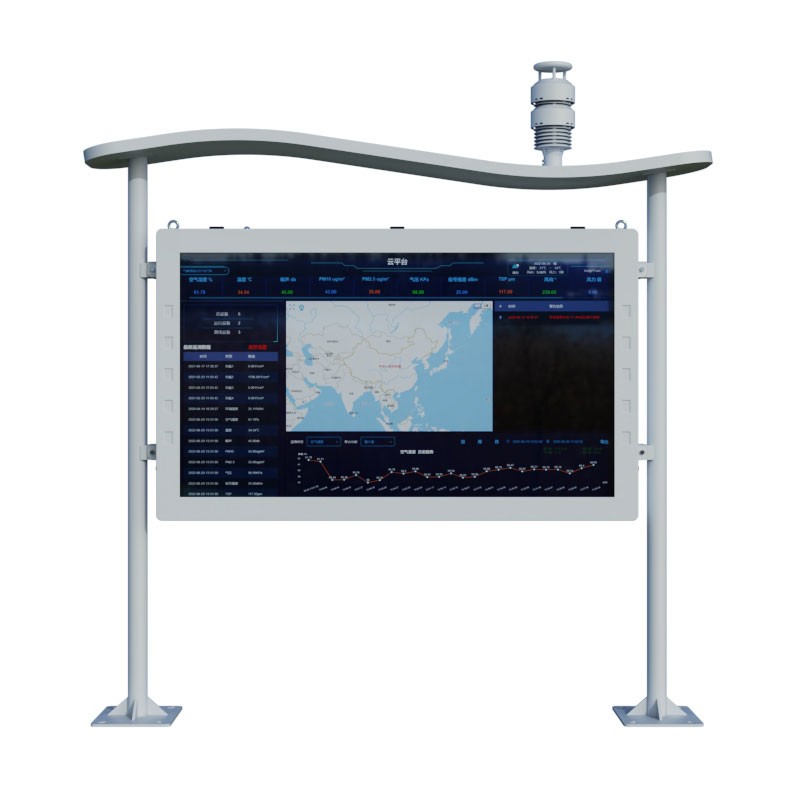

Park weather station All-Weather Monitoring of Negative Oxygen Ion Concentration and Multiple Meteorological Elements

Park weather station integrates multiple sensors for all-weather monitoring of negative oxygen ion concentration. It can be expanded to include air temperature and humidity, PM2.5, PM10, atmospheric pressure, oxygen content, noise, wind speed, and wind direction. The integrated design eliminates mechanical displacement, ensuring high accuracy, and supports data viewing on an on-site LCD screen and a remote cloud platform.

Park weather station is a comprehensive observation facility specifically designed for collecting, analyzing, and transmitting meteorological and environmental data. It achieves continuous air quality monitoring through various sensors and instruments. This equipment can monitor the concentration of negative oxygen ions in the air around the clock, and can flexibly expand the monitoring items according to user needs, including air temperature, air humidity, PM2.5, PM10, atmospheric pressure, oxygen content, noise, wind speed, and wind direction.

In terms of hardware design, Park weather station adopts an integrated sensor design with no mechanically displacing parts, effectively avoiding wear and error caused by long-term operation of traditional mechanical structures. This design not only improves measurement accuracy but also significantly extends the service life of the equipment. The sensor housing is made of imported ASA material, achieving an IP65 or higher protection rating, effectively resisting harsh environments such as salt spray. The top of the device features a concealed ultrasonic probe design, preventing interference from rain, snow accumulation, and wind obstruction.

For data acquisition and transmission, the Park weather station comes standard with GPRS transmission and offers optional RJ45 Ethernet, 4-20mA, LoRa transparent transmission, 4G transparent transmission, Bluetooth, and 485 to USB communication methods. The device supports 24-hour continuous online monitoring and can output multiple parameters to the user simultaneously via a digital communication interface. Real-time data can be read directly on-site via a full-color LCD screen, or viewed anytime, anywhere via a remote cloud platform, web interface, or WeChat official account.

The Park weather station has a wide range of applications, covering various scenarios such as tourist attractions, ecological farms, wetland parks, waterfall parks, forest parks, nature reserves, sales offices, and schools. In tourist attractions and ecological parks, the equipment helps visitors intuitively experience air quality by monitoring negative oxygen ion concentration; in school environments, it can be used for teaching practice and monitoring of the surrounding environment; in nature reserves, it provides continuous data support for ecological protection.

Regarding the software platform, Park weather station adopts a client-server architecture platform, supporting direct access to observation data via mobile phones and PC browsers without the need for additional software installation. The system supports simultaneous login by multiple accounts and devices, and supports real-time and historical data dashboard displays. The cloud server and cloud data storage solution are stable, reliable, easily scalable, and load-balanced. The equipment also supports SMS alarms and threshold settings, automatically sending warning messages when monitored data exceeds the set range. Data can be exported in tabular form for easy subsequent statistical analysis and processing.
