Application of Spectrometer in Solar Spectral Irradiance Monitoring

Spectrometer employs multispectral filters and thermopile technology, covering a spectral range of 280 to 3000 nm. It can simultaneously monitor irradiance in 10 wavelength bands, as well as total radiation, diffuse radiation, and other data, making it suitable for solar energy assessment and meteorological monitoring.

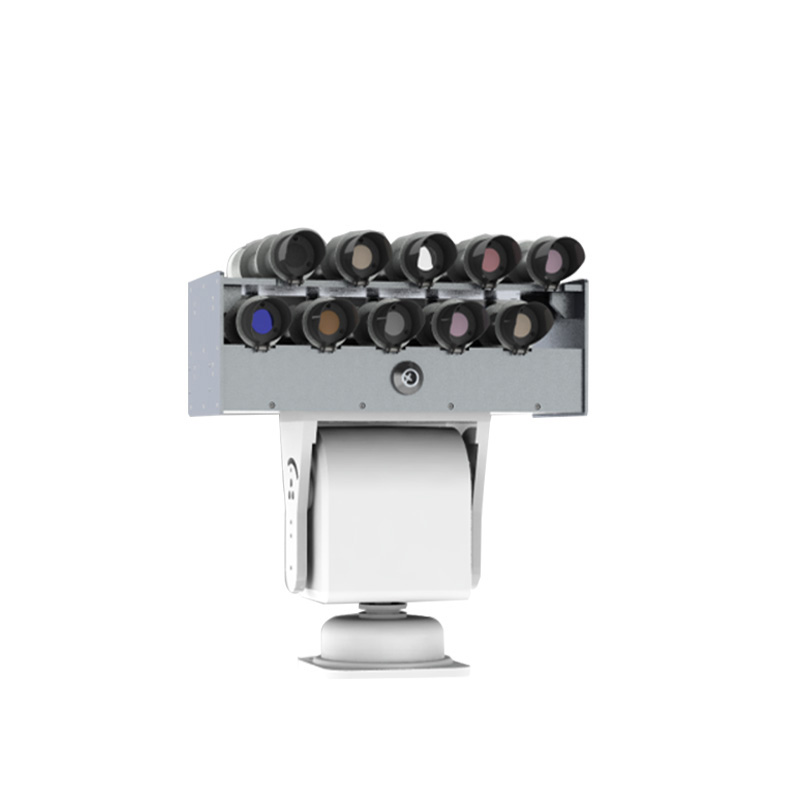

Spectrometer is an intelligent instrument capable of accurately measuring solar irradiance energy in different spectral ranges. This instrument uses a combination of multispectral filters and thermopile technology to collect and analyze irradiance data for various wavelength bands. Technically, the instrument is equipped with a specially designed fully automatic solar tracker, providing accurate solar tracking for both direct radiation and diffuse radiation sensors. The tracker can operate normally globally within latitudes less than 60°S and less than 60°N, with an operating temperature range covering -40°C to 60°C.

In terms of spectral coverage, the instrument spans a wavelength range of 280nm to 3000nm, with independent observation channels at key wavelengths including 340nm, 380nm, 440nm, 500nm, 670nm, 870nm, 940nm, 1020nm, and 1640nm. The spectral bandwidth configuration varies across different wavelengths: 2nm at 340nm, 4nm at 380nm, and 10nm for each channel from 440nm to 1640nm. This design ensures sufficient measurement resolution across all spectral ranges.

In addition to direct radiation observation, Spectrometer can simultaneously monitor various types of radiation data, including total solar radiation, scattered radiation, reflected radiation, ultraviolet radiation, photosynthetic radiation, and net total radiation. The instrument incorporates a 32-bit MCU processor and onboard high-precision GPS, GPRS, and Bluetooth modules, enabling precise time correction and high-precision positioning. Acquired data can be wirelessly transmitted to a mobile phone or PDA for storage and analysis.

This instrument also features self-calibration capabilities, enabling automatic calibration and correction of field radiation data according to the relevant requirements of the National Meteorological Metrology Station for total radiation meter calibration, ensuring the accuracy of long-term observation data. The instrument supports both AC220V and DC12V power supply modes, and its integrated green power management module allows for intelligent switching between AC and DC power, making it suitable for long-term deployment in the field. Spectrometer has been widely used in fields such as solar energy resource assessment, photovoltaic power plant site selection, and meteorological environmental monitoring.
