Overview of Shandong Fengtu Six-Element Weather Station Product Series

Shandong Fengtu IoT Technology Co., Ltd., founded in 2017 and located in Weifang High-tech Zone, Shandong Province, is a professional enterprise engaged in the research and development and production of meteorological and environmental monitoring equipment. The company has launched multiple models of six-element weather stations, forming a complete product line from fixed to portable. A six-element weather station refers to an automatic observation device capable of simultaneously monitoring six meteorological indicators: wind speed, wind direction, temperature, humidity, air pressure, and rainfall.

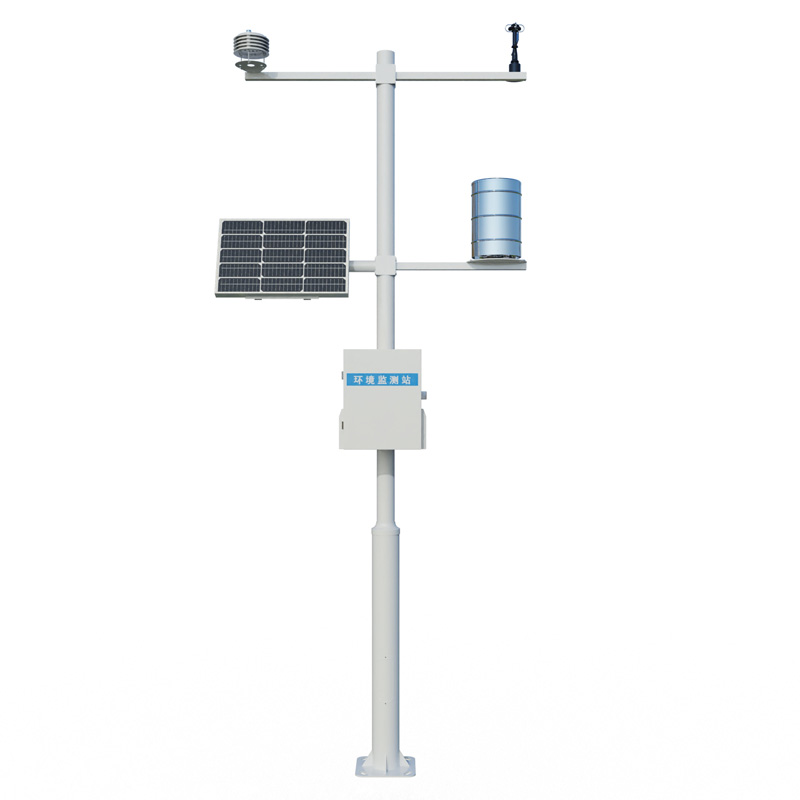

Among Shandong Fengtu's six-element weather station product series, the FT-CQX6 is an integrated weather station using ultrasonic technology. One sensor can collect six parameters: wind speed, wind direction, temperature, humidity, air pressure, and optical rainfall. This device features low power consumption and quick installation, making it suitable for field monitoring. The market reference price is approximately 19,800 yuan. The FT-QC6 is a standard six-element automatic weather station, also monitoring air humidity, air temperature, wind speed, wind direction, atmospheric pressure, and rainfall. It offers more flexible configuration and is priced between approximately 4,800 yuan and 12,800 yuan. Both products have national meteorological metrology station calibration certificates and are suitable for meteorology, agriculture, forestry, environmental protection, marine science, airports, ports, scientific research, and school education.

To address the need for portable monitoring, Shandong Fengtu has developed two portable six-element weather stations: the FT-BQX6 and FT-PQX6. The FT-BQX6 uses an integrated sensor and supports wired, Bluetooth, and GPRS transmission. The sensor housing is made of imported ABS material, achieving an IP65 protection rating or higher. The total weight is less than 5 kg, and one person can complete the deployment in two minutes. The device has a built-in 12000 mAh lithium battery, providing over 50 hours of battery life. The FT-PQX6 is equipped with a 7-inch LCD touchscreen, allowing for direct data viewing on-site. It also features a shock-absorbing and protective trolley case design for easy portability and mobile observation.

In terms of sensor products, the FT-WQX6 is a six-element micro-weather instrument that achieves 24-hour continuous online monitoring of ambient temperature, relative humidity, wind speed, wind direction, atmospheric pressure, and optical rainfall through a highly integrated structure. The output signal is via an RS485 communication interface, using the MODBUS protocol, and consumes less than 1 watt. This product can be expanded to include six AQI parameters (carbon monoxide, nitrogen dioxide, sulfur dioxide, ozone, PM2.5, and PM10), making it suitable for meteorological monitoring, urban environmental monitoring, wind power generation, and marine applications.

Shandong Fengtu has also launched other weather station models such as the FT-WN3, as well as several series of products including the FT-QC4, FT-QC5, FT-QC7, FT-QC8, and FT-QC10, forming a complete meteorological monitoring equipment system from 4 to 10 elements. The meteorological and environmental monitoring equipment independently developed and manufactured by the company has been widely used in meteorological monitoring, urban environmental monitoring, wind power generation, marine applications, airports, bridges, and tunnels, with customers throughout China. As a high-tech enterprise, Shandong Fengtu has a complete production chain, technical team, and marketing team, and provides products certified by ISO quality management system, environmental management system, and occupational health management system.
