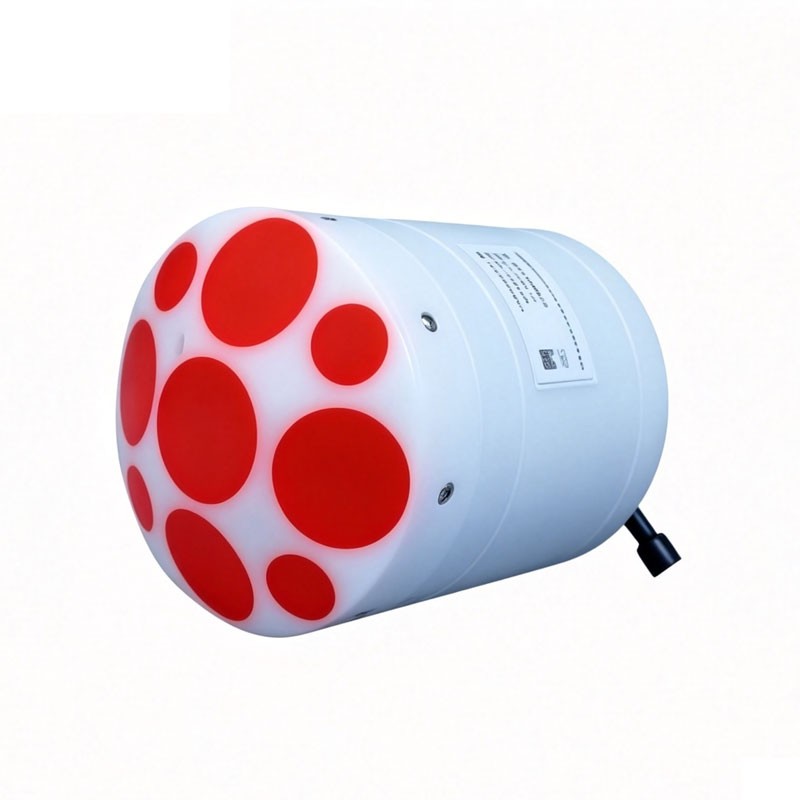

River ADCP

Model：ADCP-1+

Brand：fengtu

River ADCP can be used in mountainous areas, suburbs, irrigation ditches, and areas with limited transportation to monitor the profile velocity, flow direction, and depth of rivers....

Get a Free Quote

River ADCP Product introduction and technical parameters:

River ADCP can be used in mountainous areas, suburbs, irrigation ditches, and areas with limited transportation to monitor the profile velocity, flow direction, and depth of rivers.

Composition	Technical Specifications	Parameters
Flow rate measurement	Operation Mode	Direct reading
	Profile scope	0.06-40m
	Flow measurement accuracy (typical)	±0.25%±2mm/s
	Flow rate resolution	1mm/s
	Speed test range	±20.0m/s
	Flow measurement range	0-360°
	Flow measurement accuracy	±2°
	Number of units	1-255
	Unit layer thickness	0.02-4m
Transducer	Beam count	9 transducers; dual 4-beam 3.0MHz/1.0MHz Janus; 1 0.5MHz vertical beam echo sounder
Transducer	Beam angle	25°
Deep measurement	Height measurement resolution	0.001m
	Height measurement accuracy	1% (full water column speed of sound corrected to 0.02%)
	Height measurement range	0.2-80m
Flow measurement	Bottom tracking range	0.3-40m
	GNSS/GPS Range	0.3-80m, extrapolation for over 40m
	Internal storage	64GB
Water depth terrain measurement	Scope	40m (slant beam) - 80m (vertical beam)
Water depth terrain measurement	Velocity profile measurement range	±10.0m/s
Communication	Communication Interface	RS-232 or RS-422
	GNSS/GPS Communication	RS-232 Serial Input
	Maximum data refresh rate (output rate)	2Hz
	Internal sampling rate	Maximum 70Hz
Sensor	Temperature sensor	Accuracy: ±0.1℃; Resolution: 0.01℃
	Pressure sensor	Range: Determined by the depth rating; Accuracy: ±0.25%; Resolution: 1mm
	Attitude compass sensor	Range: Heading 0-360°; Accuracy (RMS): Roll ±1° \| Pitch ±1° \| Heading 0.8°; Resolution: 0.01°
Power supply	Power supply interface	10-26V
Structure	Casing material	POM
Environment	Operating temperature	-5℃-45℃
Environment	Storage temperature	-40℃-70℃
Physical properties	Pressure depth	50m
	Weight (in air)	≤1.5kg
	Size	Φ128mm×168mm
Optional	Available options	-
