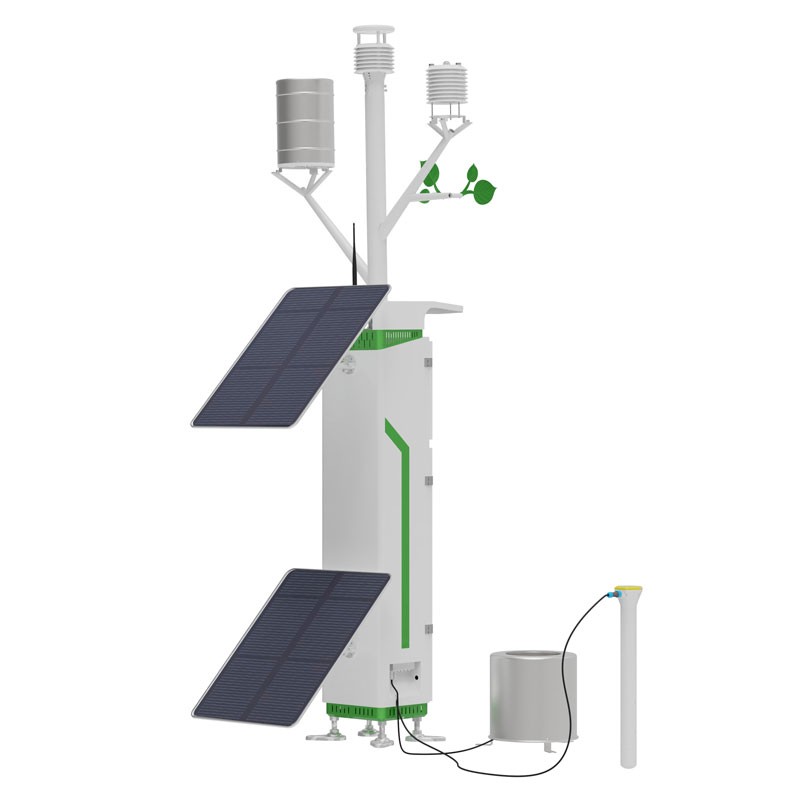

Meteorological and Soil Environmental Monitoring Station for Multi-Parameter Data Acquisition

Developed in accordance with WMO (World Meteorological Organization) standards, this meteorological and soil environmental monitoring station integrates data acquisition, storage, and transmission capabilities. It provides simultaneous monitoring of meteorological conditions, air quality, dust levels, and soil parameters—the latter via a three-level tubular sensor system. Equipped with an LCD screen and a cloud server, the station is ideal for long-term ecological and environmental observation in parks and similar areas.

This integrated monitoring system consists of sensors, a data logger, and a cloud-based environmental monitoring server. It simultaneously collects a wide range of data, including ultrasonic wind speed and direction, air temperature and humidity, atmospheric pressure, noise levels, precipitation, light intensity, CO2 concentration, PM2.5 and PM10 levels, soil temperature, moisture, and electrical conductivity (at three depths), as well as soil evaporation. The device features a high-capacity internal storage chip capable of holding over a year’s worth of data. A backlit LCD screen—displaying Chinese characters—ensures that real-time data remains clearly legible even in bright, direct sunlight. When connected to a computer, the system allows administrators to review historical records by category and export data directly into Excel spreadsheets for further analysis.

The station features a floor-standing cabinet design. Both the base and the main body are constructed from powder-coated stainless steel, offering excellent rust and corrosion resistance, making the unit well-suited for long-term outdoor deployment. The modular, plug-and-play design simplifies installation and commissioning; internal wiring is neatly organized within cable channels, and a multi-in-one parallel connector scheme minimizes the risk of wiring errors. Sensors are secured with a snap-fit mechanism, preventing loosening or data inaccuracies during transport and installation. The solar power system utilizes a laminated glass panel, with an integrated, injection-molded backplate and bracket that provide high structural strength, UV resistance, and anti-aging properties—ensuring stable operation in remote field locations lacking access to the electrical grid.

The station’s exterior has been optimized for aesthetics, allowing it to blend seamlessly into parks, ecological reserves, and landscaped scenic areas. Each unit is shipped in a reinforced, high-strength cardboard carton, minimizing the risk of component loss or damage to the enclosure during transit. This equipment can be deployed in settings such as ecological conservation, landscape management, and scientific research and observation. It provides a continuous, stable stream of standardized environmental monitoring data, offering a reliable foundation for regional environmental assessment and the documentation of ecological changes.
