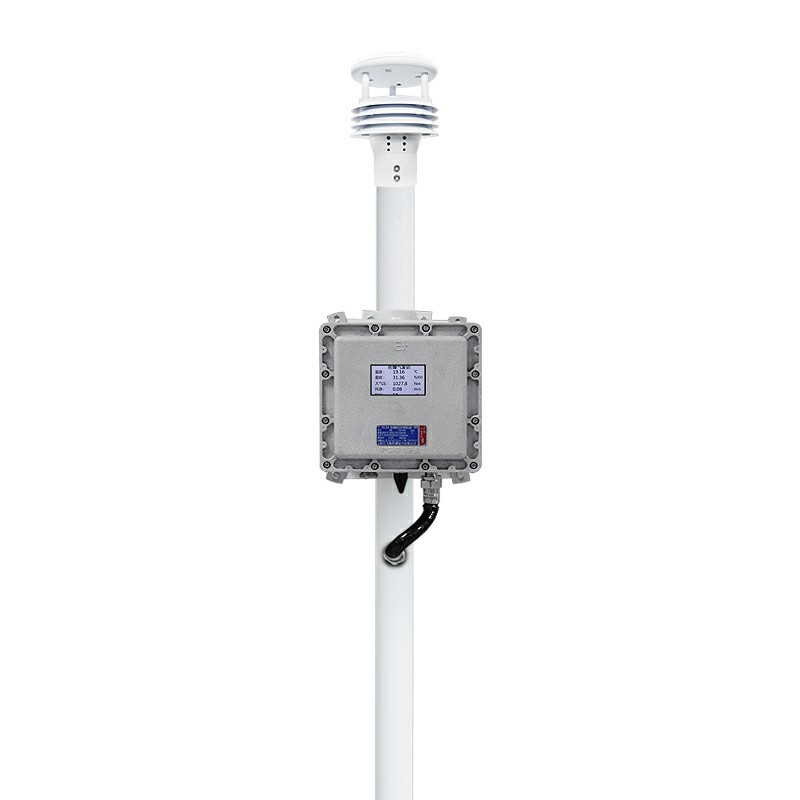

Industrial Weather Station Provides Meteorological Monitoring Support for Chemical Plant Tank Farms

Industrial Weather Station is an integrated meteorological monitoring device developed specifically for flammable and explosive environments, such as chemical plants and oil depots. It consolidates the measurement of five key parameters—wind speed, wind direction, temperature, humidity, and atmospheric pressure—into a single unit. Featuring ultrasonic sensors and a corrosion-resistant, explosion-proof design, it connects to PLC and DCS systems via RS232 or RS485 interfaces to enable real-time data transmission and remote monitoring.

Industrial Weather Station is a meteorological monitoring device designed specifically for high-risk, flammable, and explosive environments, including chemical plants, oil depots, tunnels, and mines. Standard meteorological equipment cannot meet the safety requirements of such sites, where explosive gases or dust may be present. Through rigorous explosion-proof design and specialized structural engineering, the Industrial Weather Station safely and reliably collects, processes, and transmits meteorological data within these hazardous environments.

The device integrates the monitoring of five parameters—wind speed, wind direction, air temperature, air humidity, and atmospheric pressure—into a compact, all-in-one sensor unit that is easy to install. For wind measurement, it utilizes ultrasonic technology, determining wind speed and direction by emitting continuous frequency-modulated ultrasonic signals and measuring relative phase shifts. The top cover features a concealed ultrasonic sensor design that effectively prevents interference from accumulated rain or snow and avoids measurement obstruction caused by natural wind, thereby ensuring data accuracy and reliability.

Industrial Weather Station offers comprehensive capabilities for data acquisition, storage, display, and communication. It supports RS232 and RS485 interfaces, allowing for direct integration with PLC or DCS systems in central control rooms and seamless connectivity between meteorological data and production control systems. For remote monitoring applications, an optional 4G data logger is available to upload information to a cloud platform, enabling managers to view on-site weather conditions from anywhere. The device is also equipped with an explosion-proof display screen, allowing for direct, on-site reading of real-time data.

In terms of safety and protection, the device incorporates a high-protection design that is corrosion-resistant, explosion-proof, waterproof, shock-resistant, and dust-proof. The manufacturer holds a high-level explosion-proof certificate (Ex ia IIC T6 Ga), and the equipment is certified under the national standards GB3836.1-2010 ("Explosive atmospheres – Part 1: Equipment – General requirements") and GB3836.4-2010 ("Explosive atmospheres – Part 4: Equipment protection by intrinsic safety 'i'"), ensuring safety for use in explosive environments. Additionally, the manufacturer possesses a computer software registration certificate and holds a "AAA-rated Credit Enterprise" qualification.

Industrial Weather Station is widely used in sectors with explosion risks, such as petrochemicals, oil and gas storage and transportation, mining, and power facilities. In these environments, the equipment provides 24-hour online monitoring of various meteorological parameters, delivering real-time, accurate meteorological data to support safe production management. In the event of abnormal weather conditions or sudden accidents, the monitoring data offers critical information for personnel evacuation and emergency rescue operations. By connecting to backend management software or central control systems via wired communication, management personnel can conduct in-depth analysis and processing of the meteorological data, providing a scientific basis for production scheduling and safety management decisions.
