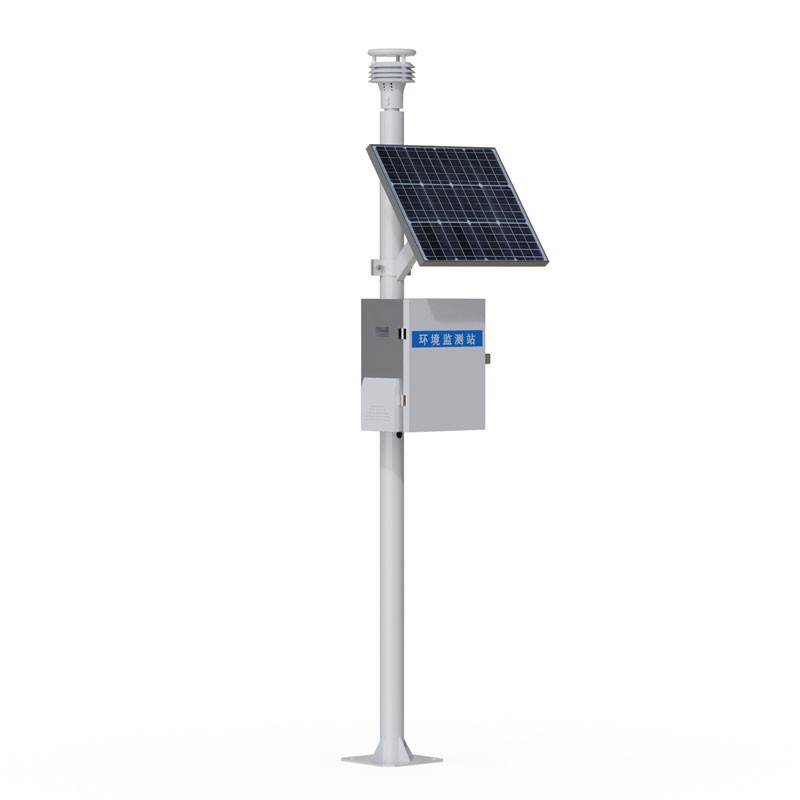

High-Precision Regional Automatic Weather Station for Diverse Field Monitoring Scenarios

The regional automatic weather station is an integrated, high-precision field monitoring device. It utilizes an all-in-one sensor (measuring five key parameters) and variable-frequency ultrasonic technology to eliminate measurement errors common in traditional equipment. Designed for low power consumption and easy installation, it supports multiple transmission methods and ensures stable, round-the-clock collection of outdoor meteorological data.

As a high-precision automatic weather observation system designed for complex outdoor environments, this station serves as a foundational component of modern grid-based meteorological monitoring networks, thanks to its high integration, low power consumption, and "ready-to-use" (no-commissioning) capabilities. Compared to traditional ultrasonic weather stations, this device features optimized core technology that eliminates reliance on high-precision timers. It effectively resolves measurement inaccuracies caused by sensor startup delays, circuit demodulation deviations, and ambient temperature fluctuations, thereby comprehensively enhancing the precision and stability of data collection.

The station employs an innovative all-in-one sensor design that simultaneously captures five key meteorological parameters—wind speed, wind direction, temperature, humidity, and air pressure—in real-time. Supporting 24-hour continuous online monitoring, it provides comprehensive output of all parameters, meeting the needs for routine, high-resolution meteorological monitoring. Its structural design is specially optimized, featuring ultrasonic probes concealed beneath the top cover; this prevents interference from accumulated rain or snow and wind obstruction, ensuring monitoring accuracy at the structural level. Based on the principle of continuous variable-frequency ultrasonic emission, the device measures relative phase to determine wind speed and direction. This mature, stable technology makes it ideal for long-term, unattended field operations.

In terms of installation and adaptability, the station is highly practical. It comes standard with a two-meter carbon steel mount that allows for direct slip-fit installation without the need for flanges or professional commissioning, enabling rapid field deployment and significantly reducing construction and maintenance costs. Transmission options are flexible; while 4G transmission is standard, the device also supports RJ45 Ethernet, 4-20mA, Bluetooth, and RS-485-to-USB interfaces, accommodating the data transmission requirements of various application scenarios. The device housing is constructed from imported ASA material and features an IP65 or higher protection rating, effectively withstanding harsh outdoor conditions such as salt spray, wind, rain, and corrosion. Offering enhanced durability, it delivers reliable performance across diverse applications, including meteorological observation, agriculture and forestry, environmental protection, airports and ports, and scientific research and education.
