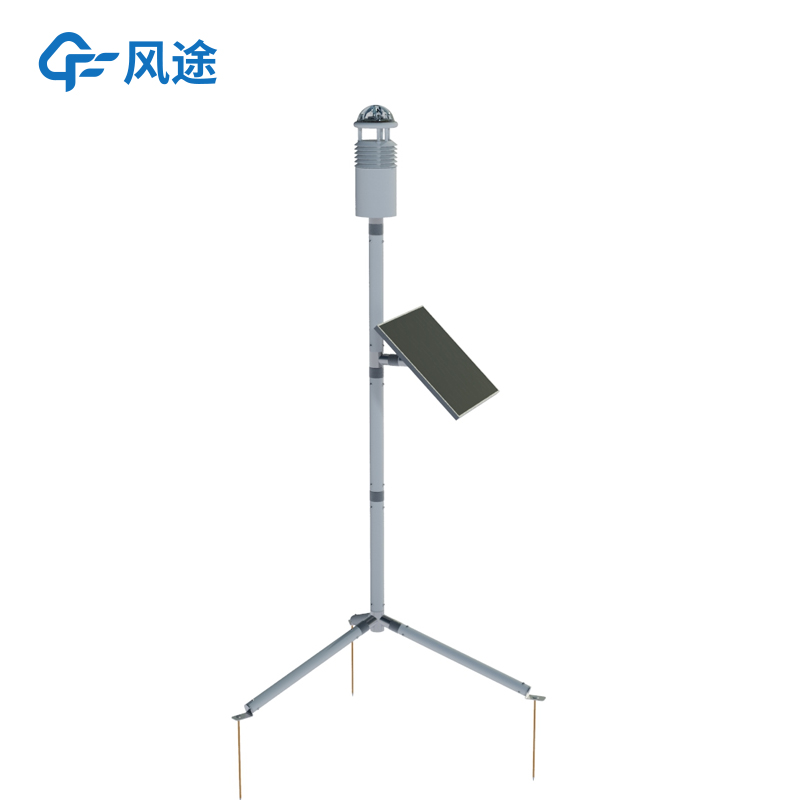

FT-JQX10: An All-in-One Portable meteorograph for Field Deployment

FT-JQX10 Portable Meteorograph is a high-precision portable weather station designed and manufactured by Fengtu Technology, a specialist in weather station solutions. The following details its specific information.

01 Features

The core design philosophy of the FT-JQX10 is high integration and portability, making it ideally suited for field emergency monitoring and mobile observation missions. It utilizes carbon fiber material for the main support structure. This material is not only only one-quarter the weight of steel but also five times stronger, ensuring robustness and lightness in harsh environments.

It integrates a portable weather station, compass, tablet computer, entrenching tool, and other essential tools into a single shockproof protective trolley case. This design makes the entire system compact and lightweight (total weight not exceeding 10 kg), facilitating easy transport and rapid deployment by the user. It is claimed that a single person can complete deployment within two minutes.

02 Monitoring Performance & Technical Parameters

The FT-JQX10 is a ten-element integrated sensor capable of simultaneous real-time observation of various meteorological and environmental parameters. The specific monitoring parameters and technical specifications are as follows:

Meteorological Elements: Wind speed (Range: 0–60 m/s, Accuracy: ±0.1 m/s), Wind direction (Range: 0–360°, Accuracy: ±2°), Air temperature, Air humidity, Atmospheric pressure, Solar radiation, and Optical rainfall.

Environmental Elements: PM2.5, PM10, and Noise.

The sensor housing is made of imported ABS material with an IP65 or higher protection rating, enabling effective resistance against corrosion from harsh environments like salt spray. The device has a built-in GPS module to automatically record the latitude and longitude of the monitoring point.

03 Data Transmission & Power Supply

To meet diverse field data transmission needs, the system comes standard with three transmission methods: GPRS (wireless remote), Bluetooth, and 485-to-USB. It is supported by a complete software ecosystem, including PC host software, an Android APP, and a cloud platform. This supports real-time data reception, storage, viewing, analysis, and export, allowing users to access data directly via computer or mobile browser.

The device employs a low-power design (≤1.75W) and is equipped with a 30W solar panel and a 12000mAh lithium battery. This combination enables continuous standby operation for over one week even in overcast or rainy weather, ensuring long-term field monitoring capability.

04 Application Scenarios

The FT-JQX10 is widely used across numerous fields including meteorological observation, agricultural and forestry research, environmental protection monitoring, marine surveys, airport and port operations, scientific expeditions, and campus education. It provides a reliable tool for various activities requiring precise meteorological data acquisition in the field.
