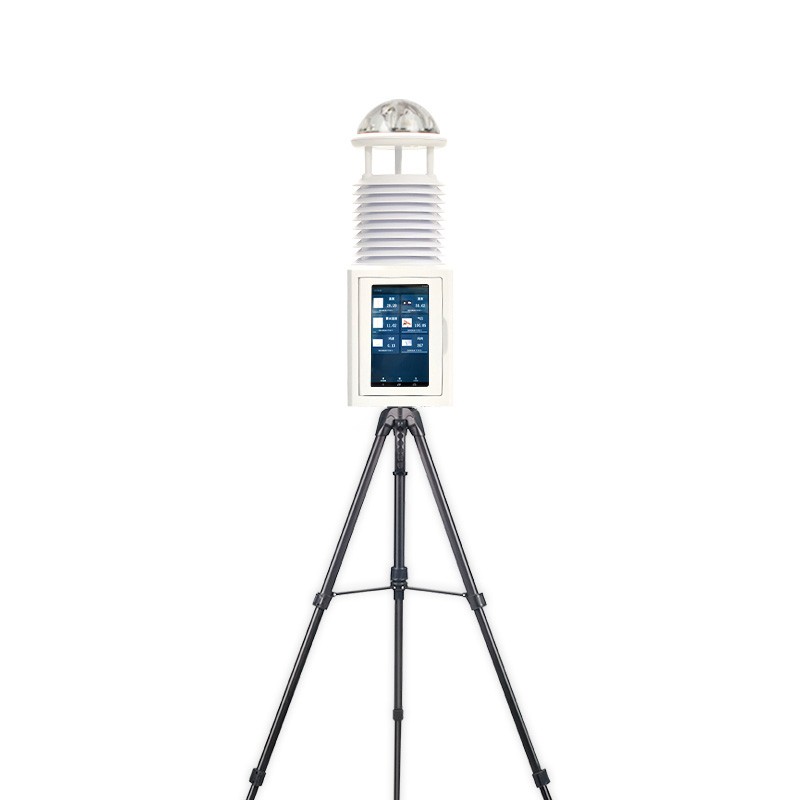

Integrated Weather Station Enables High-Precision, Real-Time Field Monitoring of Multiple Meteorological Parameters

The integrated weather station is a highly integrated, low-power automatic weather observation device. Equipped with a "seven-in-one" sensor, it accurately collects multiple meteorological data points—such as wind speed, wind direction, temperature, and humidity—and supports rapid, plug-and-play deployment, making it suitable for various unmanned field monitoring scenarios.

Designed to meet modern meteorological monitoring needs, this high-precision automated station features a highly integrated structure that eliminates the cumbersome assembly required by traditional modular systems, thereby greatly simplifying both the device architecture and the installation process. With low overall power consumption, it operates reliably on a rechargeable lithium battery (complete with a power level indicator) without the need for complex power supply systems, making it ideal for long-term, unmanned field monitoring. Additionally, the station comes with a telescopic aluminum alloy tripod and a shock-absorbing protective carrying case, significantly enhancing portability and adaptability; it can be rapidly deployed or relocated to meet dynamic operational requirements, such as emergency short-term observation and mobile monitoring.

At its core, the station utilizes a "seven-in-one" sensor that strictly adheres to meteorological observation industry standards. It simultaneously monitors seven key parameters in real-time: wind speed, wind direction, air temperature, air humidity, atmospheric pressure, light intensity, and optical rainfall. The precision of these parameters is stable, meeting professional requirements for meteorological data collection. The device features a concealed ultrasonic probe design beneath the top cover, effectively preventing measurement errors caused by snow/rain accumulation or wind obstruction. It ensures stable and accurate wind measurement by employing continuous frequency-modulated ultrasonic signal transmission and relative phase measurement principles. The sensor housing is constructed from imported ABS material, offering excellent corrosion and salt-spray resistance. With an IP65 or higher protection rating, the device is built to withstand complex and harsh outdoor environments, effectively resisting interference from wind, rain, salt spray, and dust. The integrated weather station features a 7-inch Android touchscreen that ensures intuitive and convenient operation, allowing users to get up and running quickly without the need for specialized setup. It supports wireless data transmission and automates the collection, storage, transmission, and management of weather data. With ample storage capacity—capable of holding at least 500,000 data records—it ensures the long-term preservation of monitoring data. Thanks to its excellent performance and versatility, the station is widely used across sectors such as meteorological observation, agriculture and forestry, ecological and environmental protection, marine monitoring, airport and port operations, scientific research, and campus-based science education; it serves as a core device for modern outdoor grid-based weather monitoring and emergency meteorological data collection.
