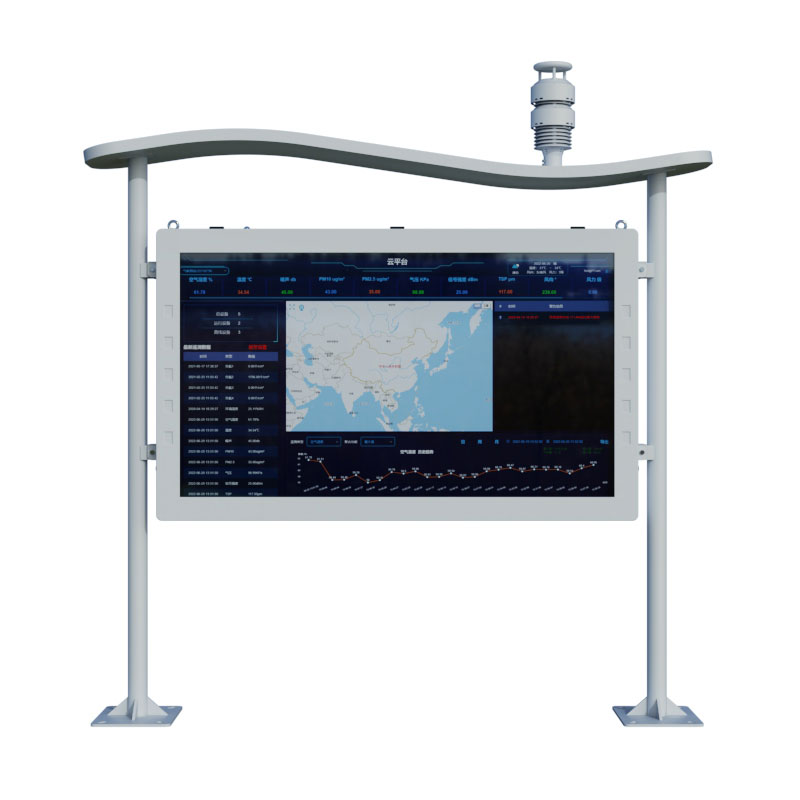

Full-Color Screen Negative Ion Monitoring Station Makes Air Quality Data in Scenic Areas Clear at a Glance

The full-color screen negative ion monitoring station is an automated environmental monitoring device designed specifically for scenic areas and ecological parks, capable of 24/7 unattended operation. The device employs an integrated sensor design, expandable to monitor multiple meteorological elements such as air temperature, humidity, PM2.5, PM10, wind speed, and wind direction. Data is displayed in real-time on a full-color LCD screen and also supports remote viewing via cloud platform, web, and WeChat official account.

The full-color screen negative ion monitoring station is mainly used in tourist attractions, ecological farms, wetland parks, forest parks, and other similar settings to monitor and display the concentration of negative oxygen ions in the air in real time. The integrated sensor design eliminates mechanical displacement, ensuring high accuracy and long service life. Monitoring items can be flexibly expanded according to user needs, including air temperature, air humidity, PM2.5, PM10, atmospheric pressure, oxygen content, noise, wind speed, and wind direction. The equipment is equipped with a full-color LCD screen with a resolution of 1920×1080 and a brightness of 1500 to 2500 cd/m², ensuring clear readability even in strong outdoor light conditions, allowing visitors and management personnel to intuitively understand air quality.

For data transmission, the equipment supports 4G and fiber optic communication, enabling real-time uploading of monitoring data to a cloud platform. Users can remotely view the data via PC web interface or WeChat official account, achieving unattended 24-hour continuous automatic monitoring. The system is compatible with automatic alarm functions; when indicators such as negative oxygen ion concentration exceed set thresholds, warning messages are sent via multimedia speakers, audible and visual alarms, or SMS messages. The equipment has an IP65 protection rating, with a 2-3mm carbon steel structure and composite sealing strips for multi-angle waterproofing. A bottom filter can filter dust particles larger than 5μm, ensuring long-term stable operation in harsh outdoor environments.
