Explosion-proof Weather Stations Enable Precise Meteorological Data Monitoring in High-Risk Industrial Scenarios

Explosion-proof weather stations are integrated monitoring devices adapted for high-risk scenarios such as chemical plants and oil depots. Equipped with high-precision five-element sensors, they possess multiple layers of high protection and transmit data via wired connection. They can accurately collect and display environmental meteorological parameters in real time, ensuring safe production in high-risk industrial environments.

These explosion-proof weather stations are integrated meteorological monitoring devices specifically developed for flammable and explosive high-risk industrial scenarios such as chemical plants, petroleum plants, mines, and tunnels. They effectively compensate for the shortcomings of ordinary weather stations, such as insufficient protection and poor adaptability, and solve the safety and compliance challenges of meteorological monitoring in high-risk environments. The equipment integrates multiple functions including data acquisition, storage, communication, and display. Without complex supporting equipment, it can achieve all-weather automated meteorological monitoring, adapting to the routine monitoring needs of various hazardous industrial operating environments.

The explosion-proof weather station adopts a high-standard protective design, integrating anti-corrosion, explosion-proof, waterproof, shockproof, and dustproof performance. The overall structure is designed to meet the stringent operational requirements of high-risk industrial scenarios, enabling continuous and stable operation under complex and harsh conditions. It eliminates the risk of electrical sparks or high temperatures during operation, thus preventing explosions and fully complying with safety monitoring standards for high-risk industries. In terms of core hardware design, the equipment features a top-covered concealed ultrasonic probe, effectively avoiding monitoring interference caused by rain, snow accumulation, and natural wind obstruction, ensuring the stability of the monitoring process.

The explosion-proof weather station uses a continuous frequency conversion ultrasonic signal transmission principle. It accurately detects wind speed and direction data by measuring the relative phase. The built-in integrated five-element sensor can simultaneously collect five core meteorological data points: wind speed, wind direction, air temperature, air humidity, and atmospheric pressure. The equipment exhibits excellent measurement accuracy and resolution; the measured parameters of wind speed, wind direction, temperature, humidity, and air pressure all meet high-precision industrial monitoring standards, providing reliable data for industrial production, environmental management, and safety early warning.

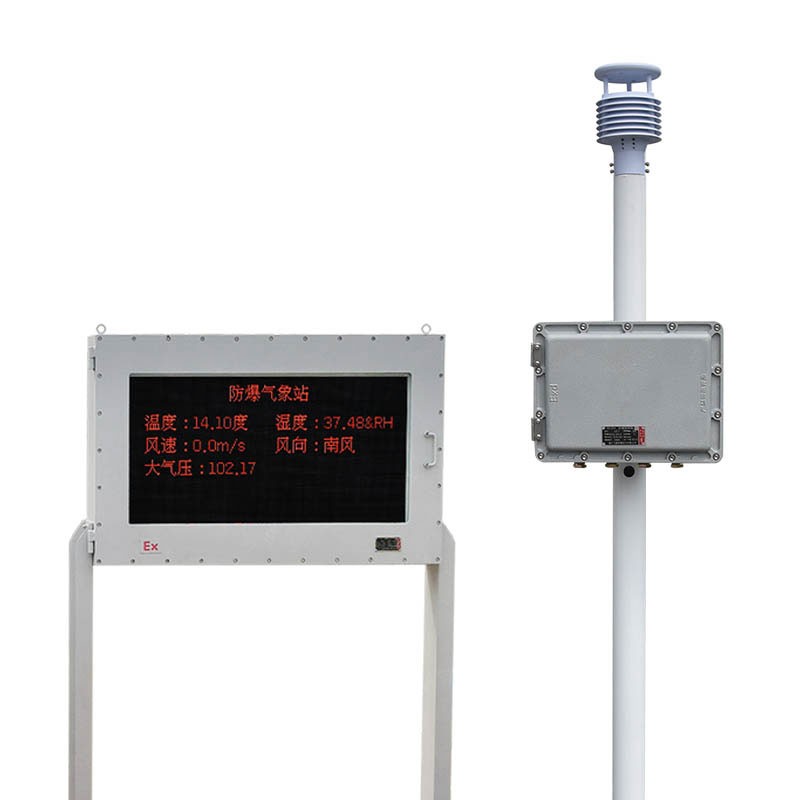

The data transmission and display process utilizes a stable RS232 wired transmission method, allowing monitoring data to be synchronized to the explosion-proof display screen in real time. The screen, composed of nine P10 unit boards, measures 1 meter by 0.5 meters, providing clear and intuitive data display. The equipment features a streamlined overall structure, convenient installation, and requires minimal maintenance. It is suitable for long-term use in various flammable and explosive environments such as chemical plants, oil depots, mines, and tunnels, making it a core piece of standardized meteorological monitoring equipment for high-risk industrial settings.
