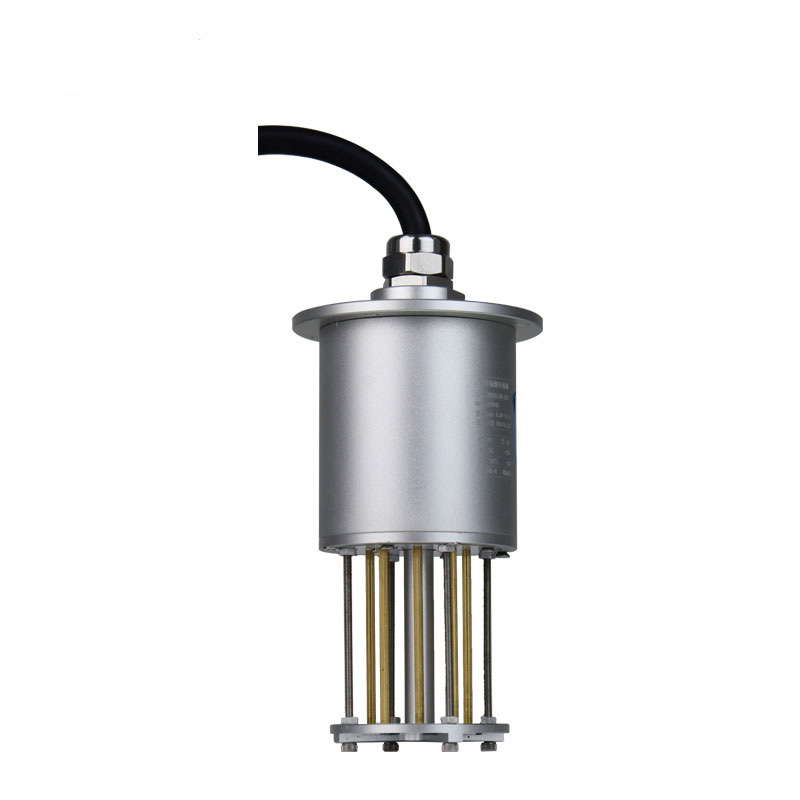

Ice Monitoring Equipment Monitors Icing Information and Calculates Thickness

Ice Monitoring Equipment employs microwave detection technology to monitor icing conditions and calculate ice thickness, leveraging the distinct feedback responses of ice, water, and air to microwave signals. It captures real-time data on ice accumulation and environmental parameters; when installed on utility towers, it enables online monitoring of icing conditions along power lines, thereby providing essential data support for the safe operation of the power grid.

At its core, Ice Monitoring Equipment utilizes microwave detection technology to accurately identify the icing status within the sensor's sensitive zone by transmitting and receiving microwave signals and exploiting the differential signal feedback from various media—such as ice, water, and air. The device captures the intensity and phase information of echo signals, combining this data with the characteristics of ice distribution to calculate thickness. The monitoring process is stable and reliable, remaining unaffected by weather factors such as rain or fog, and consistently outputs accurate data regarding icing conditions.

This sensor simultaneously captures data on conductor ice thickness alongside environmental parameters such as temperature, humidity, and wind speed. With its high data acquisition frequency and rapid response speed, it fully meets the online monitoring requirements of power grids. Typically installed on transmission towers, the device accurately reflects the icing status of surrounding transmission lines by monitoring ice accumulation within its probe area. This eliminates the need for manual on-site inspections, thereby reducing the risks associated with high-altitude operations and significantly improving the efficiency of icing data collection.

In practical operation, Ice Monitoring Equipment can be deployed across various types of towers, insulators, and transmission lines to achieve real-time, comprehensive monitoring of icing conditions across the entire network. Monitoring data is uploaded via a communication module to an operations and maintenance (O&M) platform, allowing grid maintenance personnel to remotely view ice thickness, trend analyses, and anomaly alerts, thereby enabling them to stay fully informed of the lines' operational status. When ice thickness reaches a pre-set warning threshold, the system automatically issues an alert, facilitating the rapid deployment of O&M personnel to perform ice-melting, de-icing, and line inspection tasks, and effectively preventing safety incidents—such as conductor galloping, line breakage, or tower collapse—caused by ice accumulation.

Designed to adapt to complex outdoor environments, this sensor features a wide operating temperature range, high anti-interference capabilities, and robust protection ratings, ensuring stable performance even under extreme conditions involving low temperatures, high humidity, and strong winds. As a critical sensing component in the power grid's ice disaster prevention and control strategy, it provides a continuous and accurate data foundation for the safe operation and maintenance of transmission lines. Ultimately, it facilitates the intelligent and refined management of the power grid, enhancing the power system's resilience against ice and snow disasters and safeguarding the long-term stability of the transmission network.
