Thermal imaging life detector

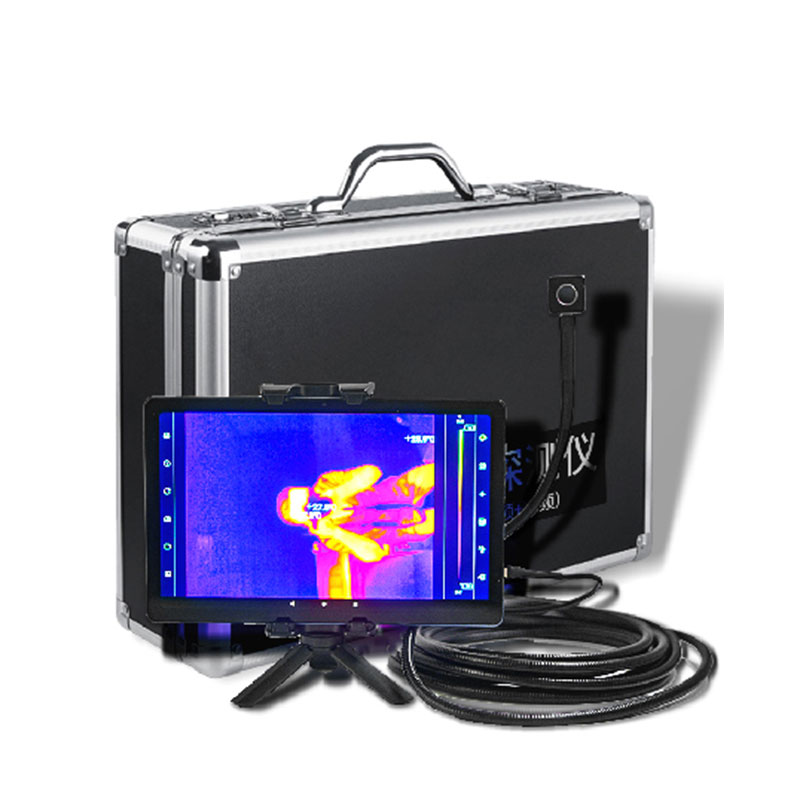

Thermal imaging life detector is a device that uses infrared thermal imaging technology to detect and locate living beings, allowing for the quick and effective identification of the precise location of survivors.Thermal imaging life detector detection system consists of a high-resolution thermal imaging sensor, a high-sensitivity audio probe, and a high-performance graphics processing unit.The thermal imaging sensor features a compact and lightweight design and is connected to the main unit via a 5-meter flexible cable.The audio sensor is integrated into the probe, making it a highly suitable device for search and rescue operations.It can be used in confined spaces, dark environments, and complex environments, providing very intuitive graphical images of objects exhibiting vital signs, while also capturing audio signals beyond the line of sight.

1、Thermal imaging life detector Features:

1.High-resolution thermal imaging display, clearly showing the difference between human vital signs and the surrounding environment.

2.Intelligent tracking of objects with vital sign temperatures, and displaying the temperature.

3.Integrated high-sensitivity audio probe, capable of detecting audio information such as breathing, calls for help, and knocking sounds.

4.Ultra-high processing performance: The main unit uses an 8-core high-frequency chip, allowing for smooth real-time display of the detection image.

5.Multiple graphic modes: 6 graphic modes for easier acquisition of high-quality and interpretable information.

6.Photo and video recording capabilities for easy summary and analysis.

7.Flexible probe design: Can be inserted into small gaps and has a certain degree of flexibility, allowing it to reach the location of trapped individuals to obtain more information.

8.English and Chinese operating system.

2、Thermal imaging life detector Product Specifications:

High-resolution display: 10.36-inch In-cell full-screen display with 2000*1200 resolution;

Microphone sensitivity: -32db

Host performance: 8-core graphics processing chip

Memory: 128GB

Flexible probe length: 5m

Operating wavelength: 8-14um

Thermal imaging frame rate: 25Hz

Temperature measurement range: -15°C to 600°C

Temperature measurement accuracy: ±2°C or ±2% of reading

Temperature measurement: Supports full-screen high point, low point, center point temperature measurement and area temperature measurement

Battery: 6000mA lithium battery;

Operating temperature: -10°C to 75°C

Storage temperature: -45°C to 85°C

3、Thermal imaging life detector Operating Instructions:

1.Powering on: After unpacking, take out the main unit and press the power button on the side to turn it on.

2.Assembly: Connect the Type-C connector on the flexible tube to the main unit; the software will start automatically.Connect the headphones to the audio box extending from the flexible tube (note: do not connect them to the audio port on the main unit).

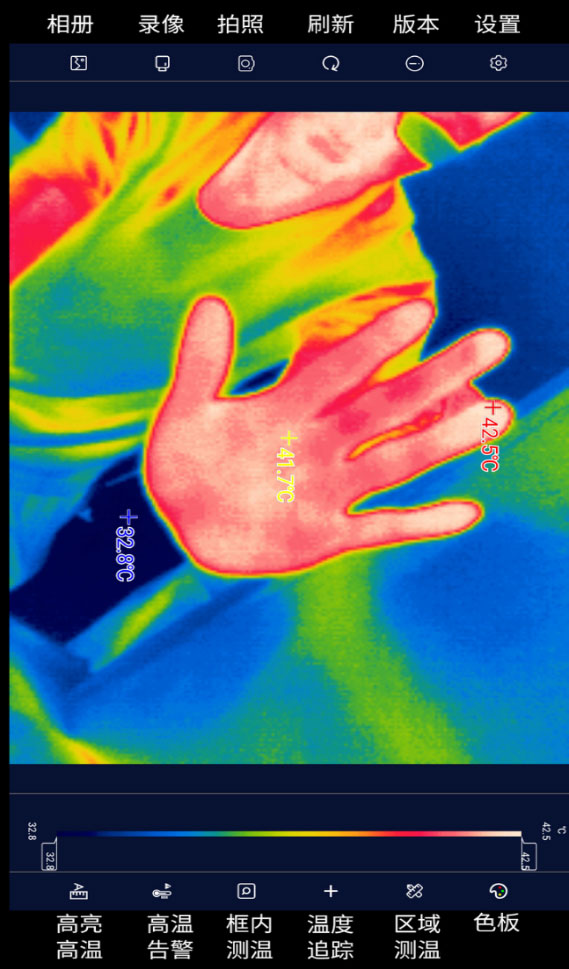

3.The system operating interface is shown in the image below:
