Innovative Vehicle-Mounted Meteorological Monitoring Equipment for Emergency Response" Chinese

Today, we will introduce FengTu's Vehicle-Mount Weather Station. There are mainly two models: FT-CZ5 and the upgraded FT-CZ5S. Both are highly integrated, portable monitoring devices with high-precision automatic weather observation capabilities.

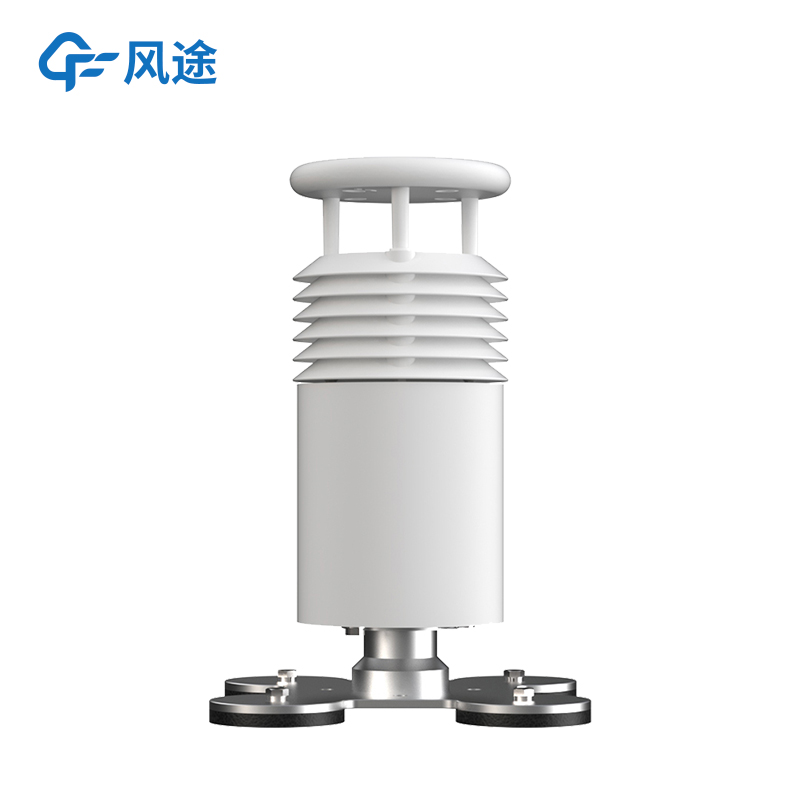

The core of these two Vehicle-Mount Weather Stations is a five-element integrated sensor that can conduct real-time observation of key meteorological elements including wind speed, wind direction, air temperature, humidity, and atmospheric pressure. The sensor housing is made of imported ABS material with a protection rating of IP65 or higher, effectively resisting harsh environmental conditions.

The bottom of the device is equipped with high-strength magnets wrapped in rubber, enabling quick and non-destructive installation. It can be firmly attached to the roof of a vehicle, making it ideal for emergency vehicles and other scenarios requiring rapid deployment. The entire device is lightweight and comes with a shock-absorbing carrying case for easy transportation. One person can complete the deployment in as fast as two minutes.

Technical Highlights:

① Precise Measurement: They use ultrasonic technology to measure wind speed and direction. This design without mechanical moving parts is more durable and accurate, with wind speed error within ±0.1m/s and wind direction error of ±2°.

② Automatic Direction Finding: The device has a built-in electronic compass that can automatically find the true north direction regardless of the vehicle's orientation, ensuring the accuracy of wind direction data.

③ Precise Positioning: Supports Beidou and GPS dual-mode positioning system, providing positioning accuracy up to 0.1 meters.

FT-CZ5S is an enhanced model of FT-CZ5. The main upgrade is the integration of three 120° wide-angle cameras. Through the supporting software, users can view real-time on-site video and monitoring data on the PC side, achieving synchronous observation of meteorological information and on-site scenarios. This is particularly useful for tasks requiring on-site command and investigation.

The two models differ slightly in power consumption and battery life. The FT-CZ5 without cameras has a power consumption of 1.75W and a battery life of over 50 hours, while the more feature-rich FT-CZ5S has a power consumption of 3.12W and a battery life of approximately 24 hours. Both support wired connection to computers or tablets for data reading and have built-in memory that can store no less than 500,000 data points.
